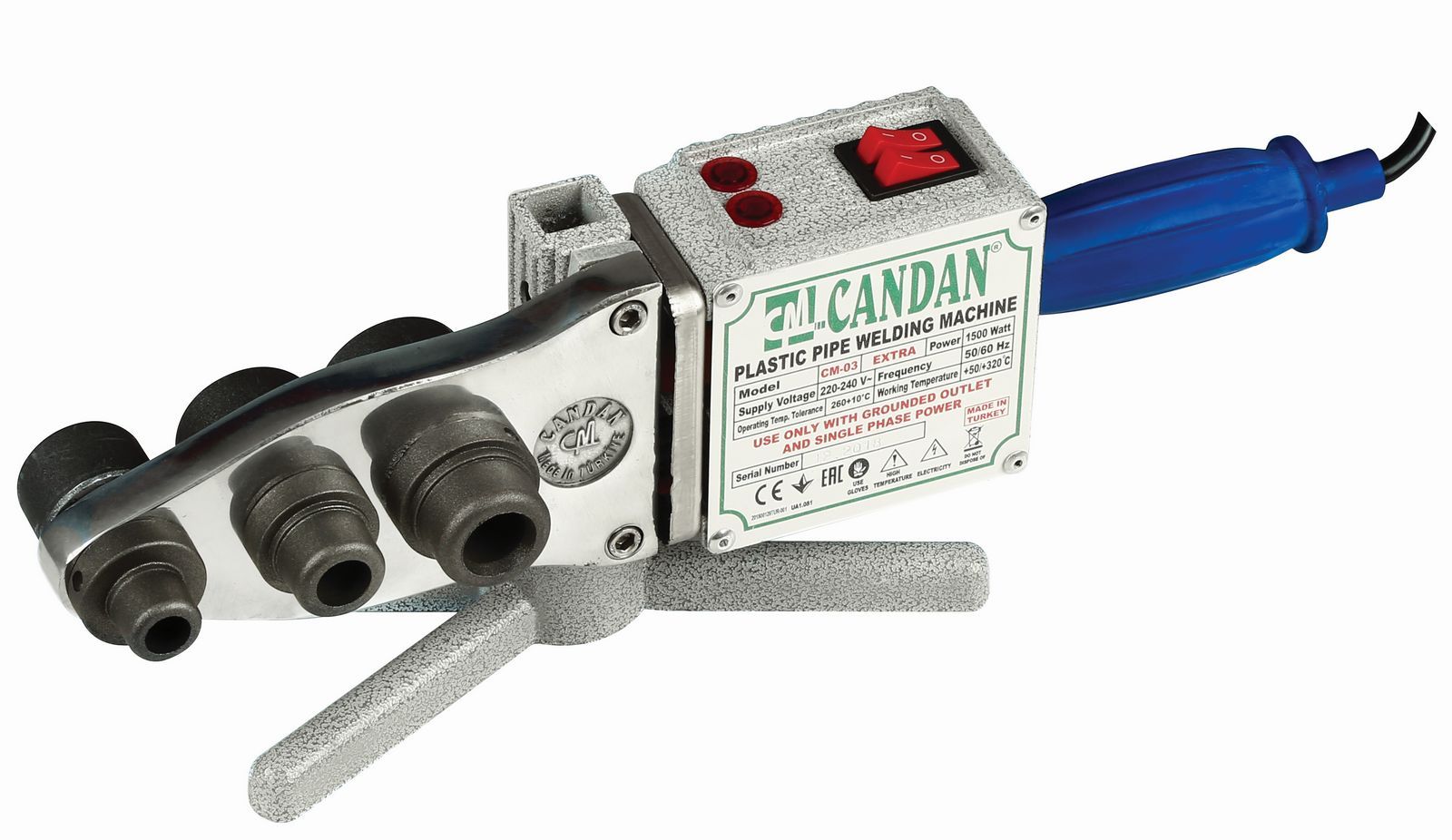

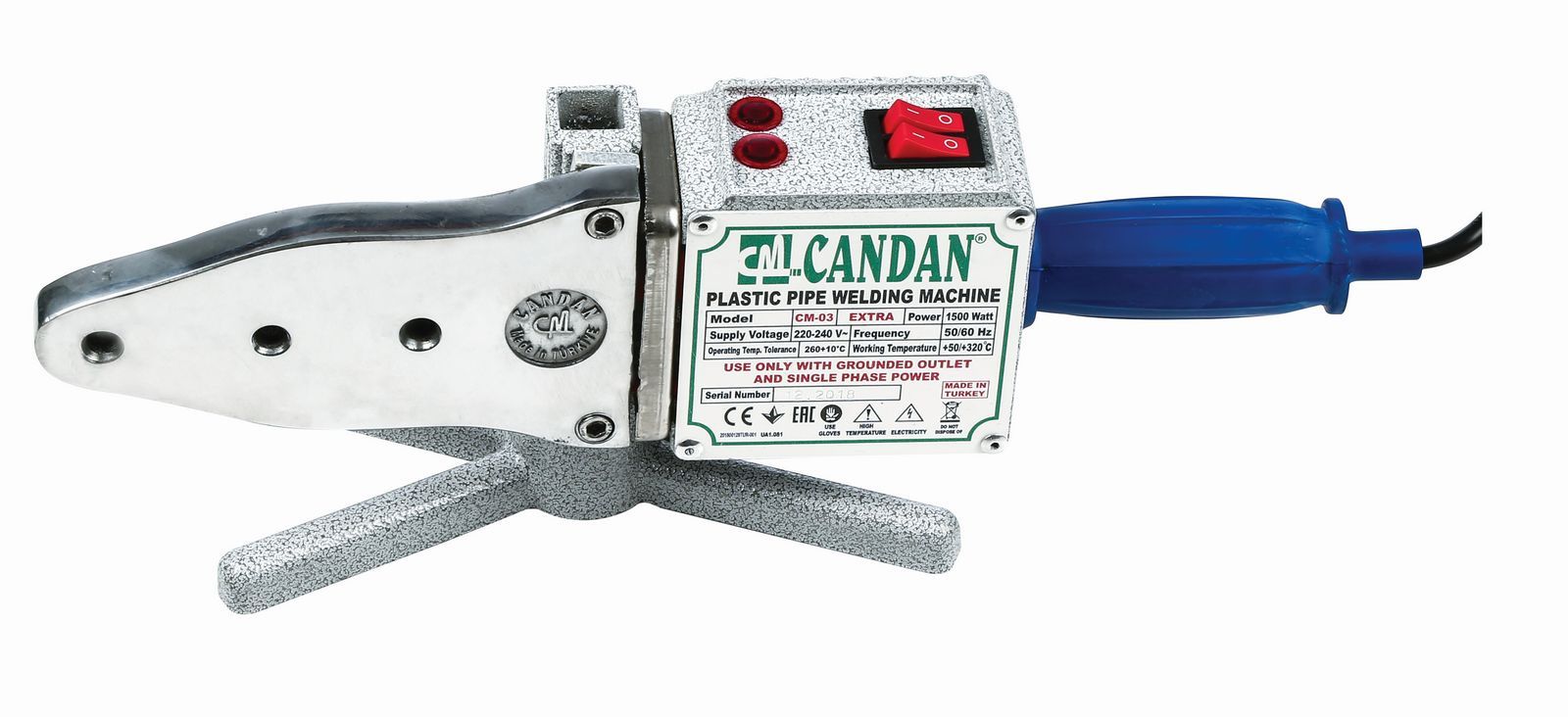

CM-03 EXTRA PPR WELDING MACHINE SET
Product Code:
CM-03-SET-WV
Installed Capacity
750+750=1500 Watt (Double Resistance)
Supply Voltage
220-240V ~
Frequency
50-60 Hz.
Operating Temperature
270 ° C
Cable
3X1 mm²,210cm Black Cable
Thermostat Regulation Indicator
50-320 ° C
Resistor Material
Stainless Steal
Main Supply Cross Section
3 x 2,5 mm² Feeding Cable
Protection Class
IP 44
Main Fuse Value
16 A (on electrical installation )
Other Remarks
a- Three wedling sockets can be simultaneously installed on a unit
b-The ON-OFF switch is without a light indicator and has been manufactured with a aluminium foot.

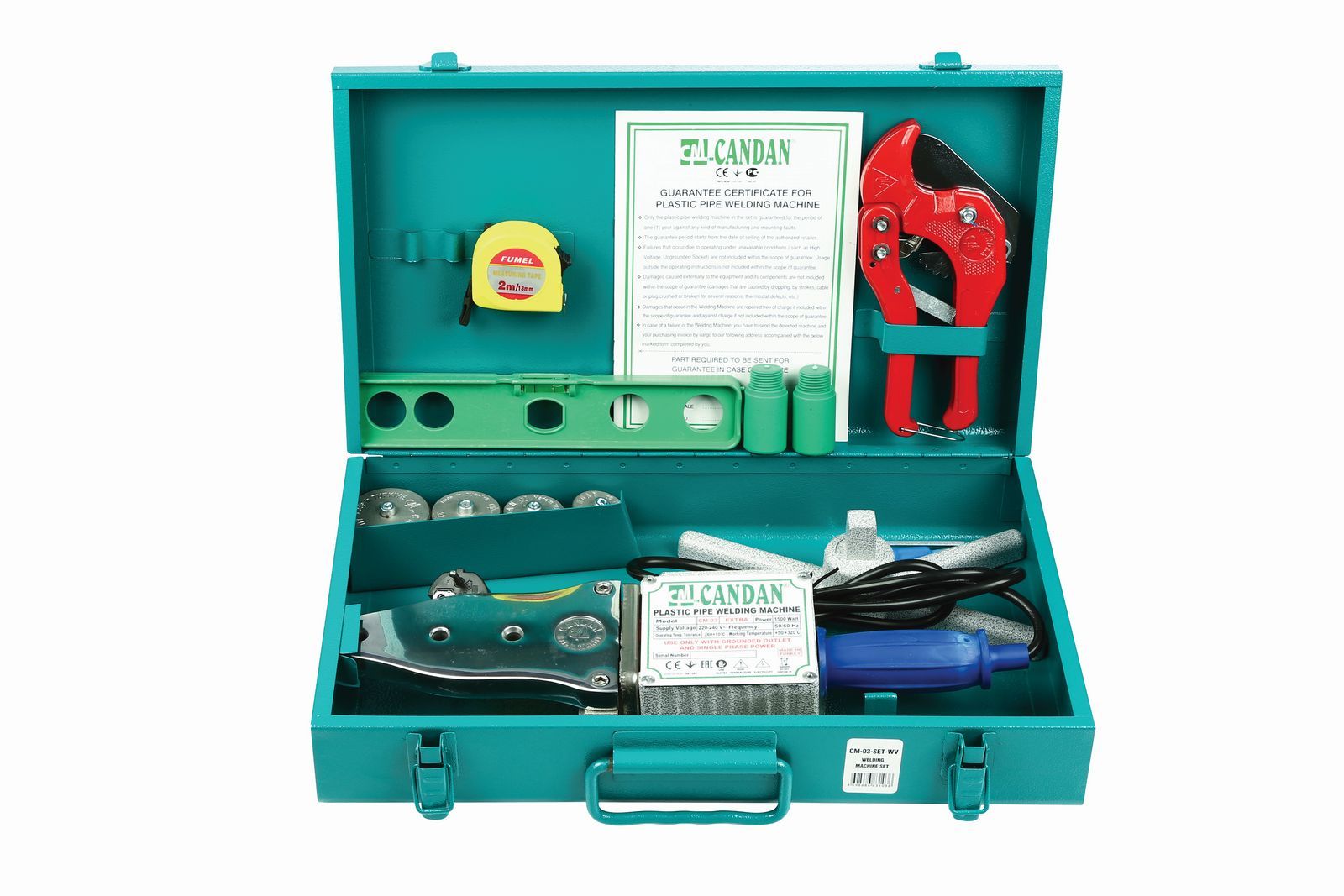

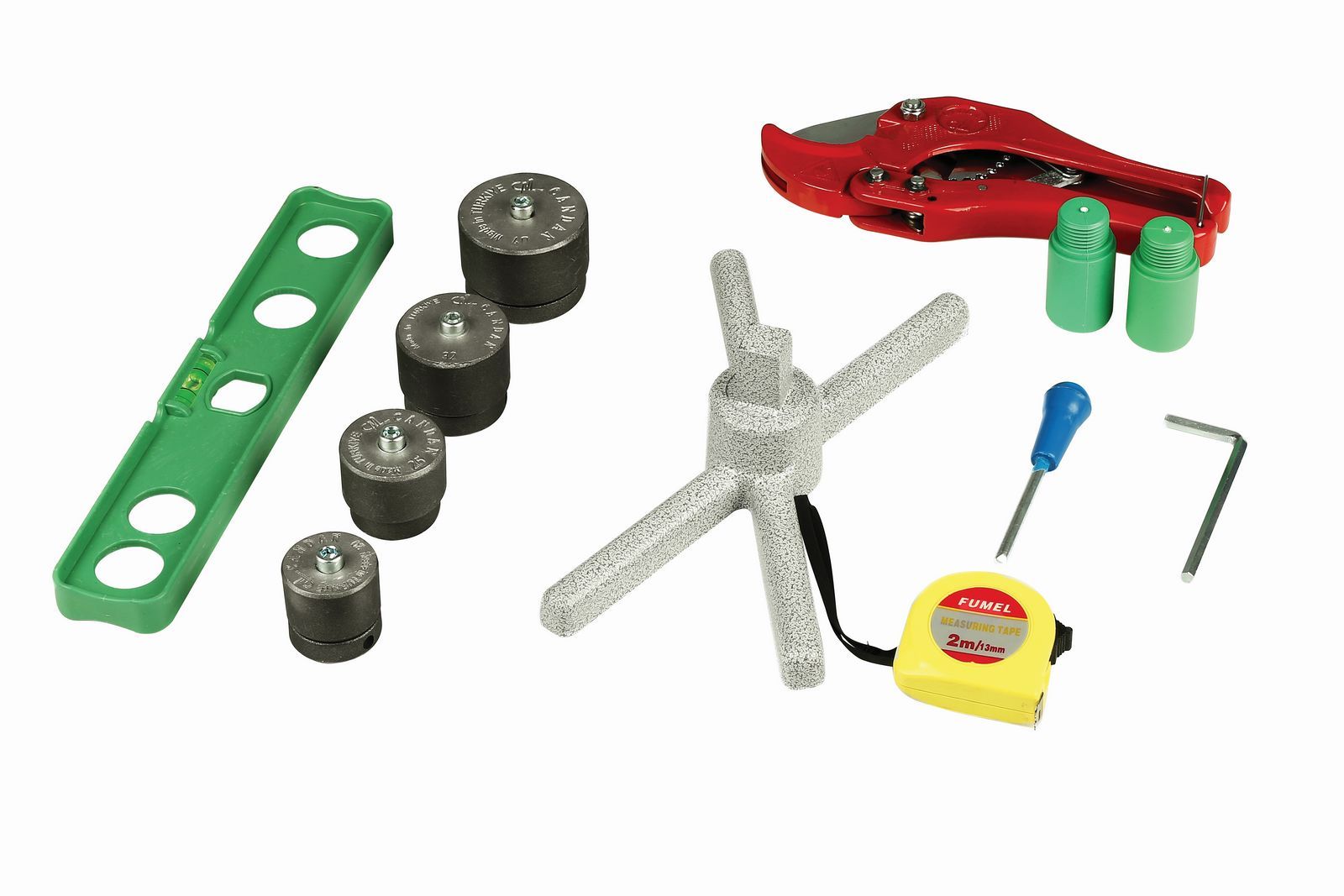

c- The welding machine set includes heads of 20,25,32,40 mm, plastic pipe shears of 16-42 mm and other apparatuses you might need for PPRC welding.
b-The ON-OFF switch is without a light indicator and has been manufactured with a aluminium foot.
c- The welding machine set includes heads of 20,25,32,40 mm, plastic pipe shears of 16-42 mm and other apparatuses you might need for PPRC welding.
Weight
5,8 Kg (Net) -6,0 Kg (Gross)
